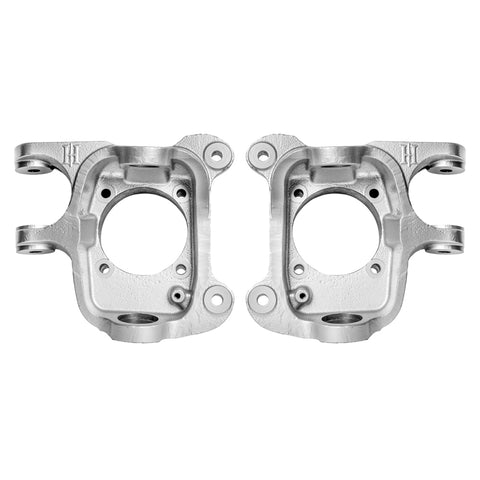

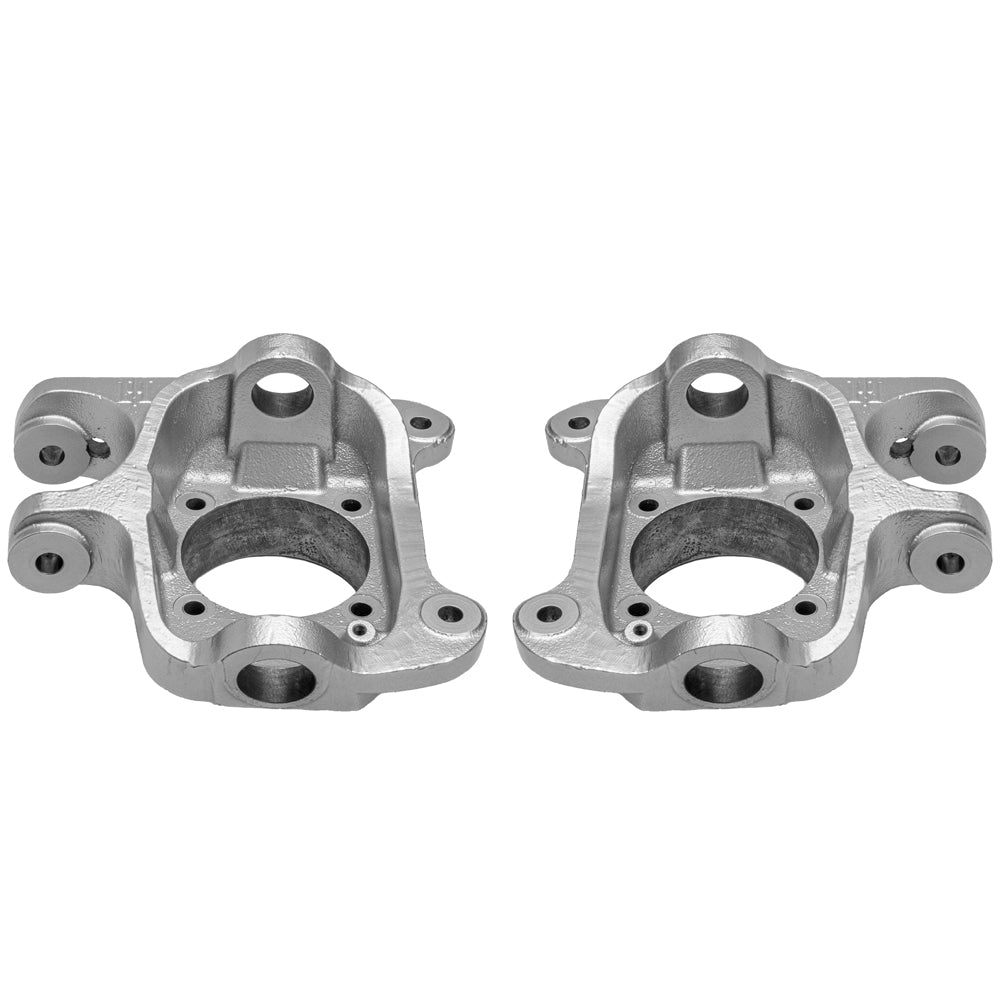

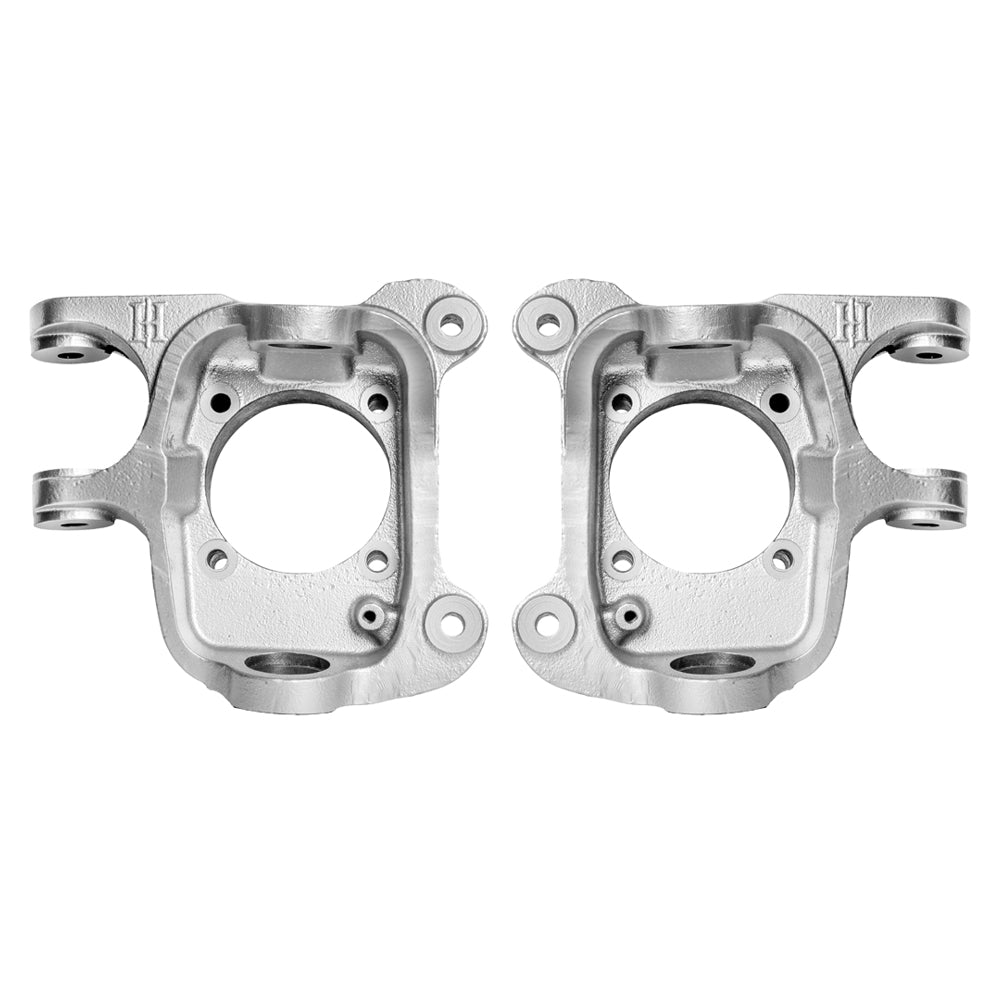

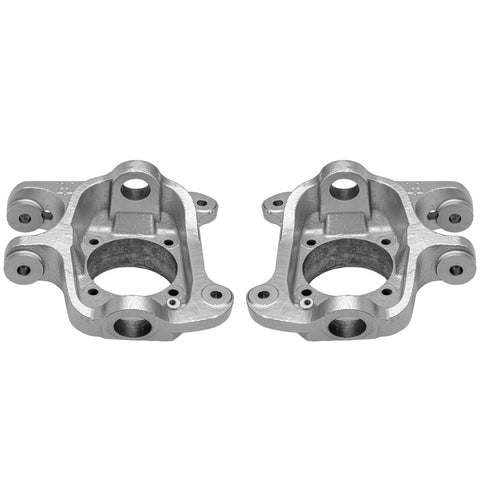

AI-8000 American Iron Offroad™ Ford Super Duty Outer Knuckle Set

Want a 2005+ Super Duty knuckle with double-sheer and hi-steer? These knuckles bring innovation and design to the stock knuckle at an affordable price.

• Casted, machined, and powder-coated in the USA, eliminating the need for additional machining, drilling, and tapping.

• Designed with added material thickness and radii blending the knuckle body into the upper arm, enhancing overall strength.

• Under testing, our knuckles show only .045”-.046” deflection at 25,000# of force, compared to a standard full hydro setup's 8,500# push/pull.

• Features an adjustable steering stop for customized performance.

• Compatible with our 05+ Ball Joint Delete™ Systems or regular ball joints, offering flexibility in setup.

• FEA testing demonstrates exceptional strength and durability, ensuring reliable performance under extreme conditions.

• Price is for the pair of knuckles

Steering Configuration:

For the mechanical steering option we have machined the passenger side hi-steer arm to accommodate a drag link so the joint is in a neutral position and won’t bind as early during down travel. We’ve positioned a 3/4” threaded hole 6.25” from the rotational axis to utilize all of your steering angle so your mobility isn’t hampered. We’ve retained the ability to mount the tie rod in double sheer and counter bored the top bore so the bolt head rests on a flat surface.
