American Iron Offroad Ball Joint Delete System for Ford Super Duty Dana 60 & Ultimate Duty Dana 60

  • Sale
  • Regular price $649.99



*HIGH CLEARANCE VERSIONS REQUIRE WELDING AND ARE NOT ZINC PLATED*

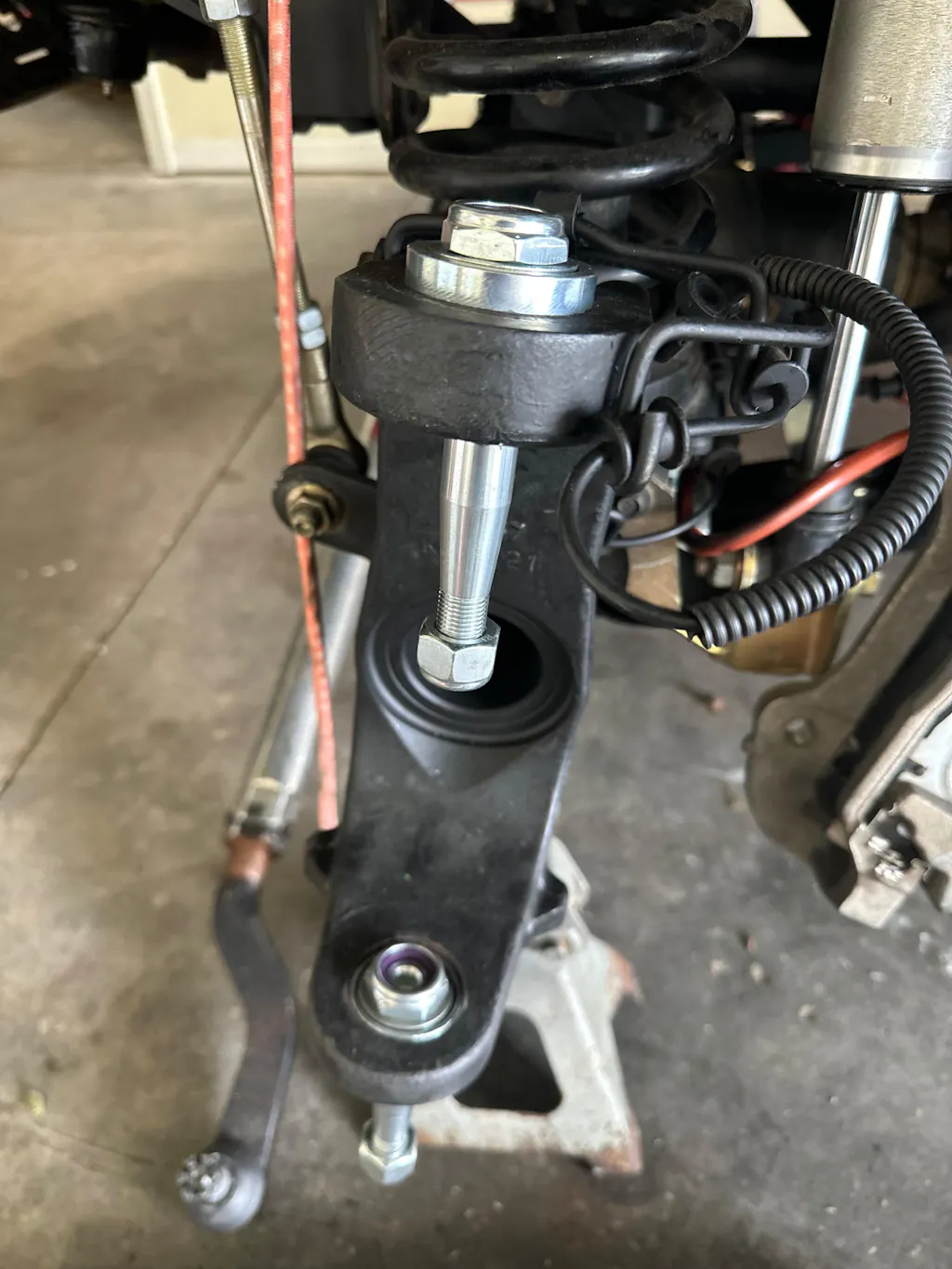

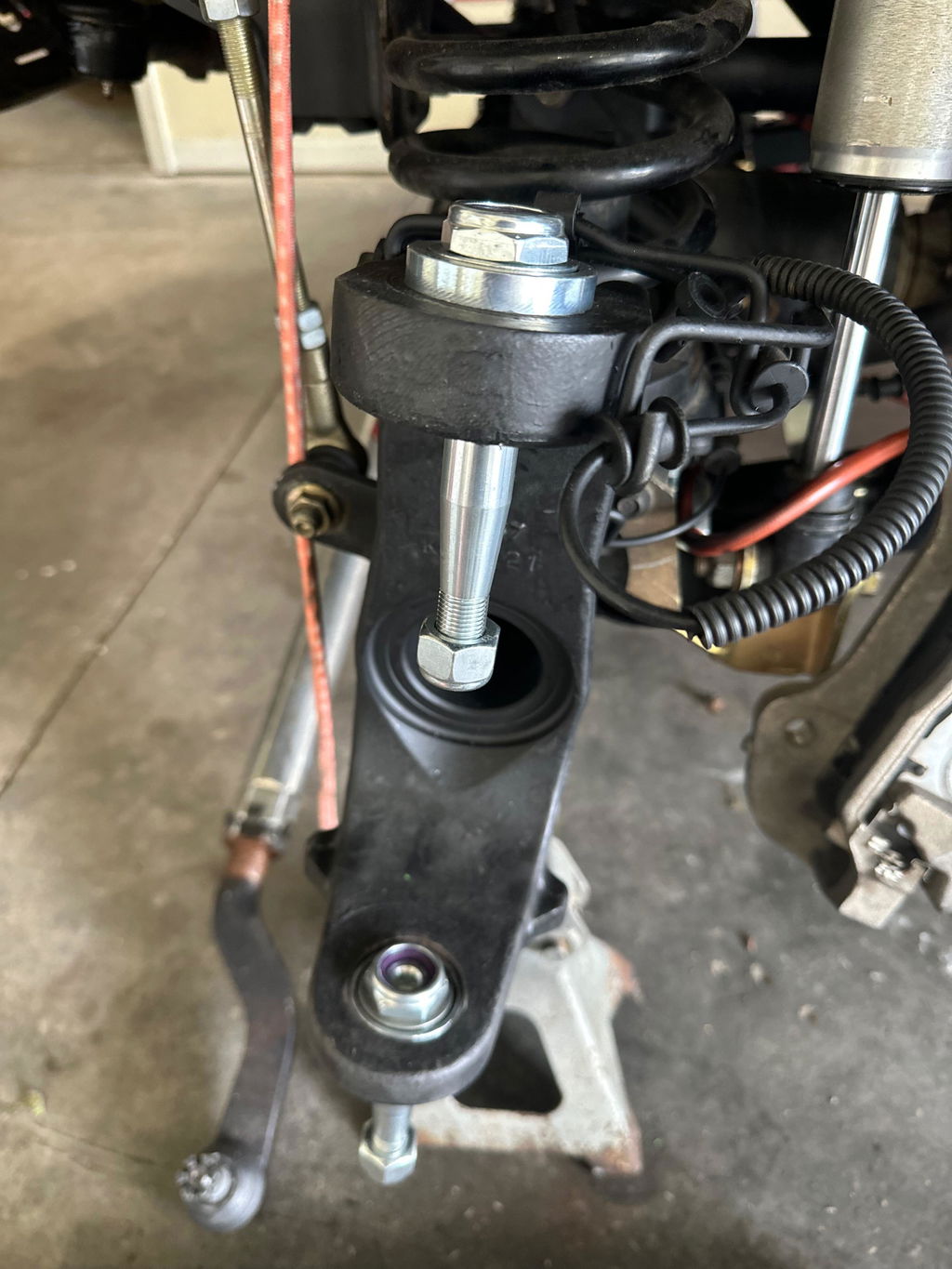

The Race Series kits feature a split-tapered bushing which expands as preload is added to the assembly ensuring a precise fit. The customer can trim the top flange of the bushing based on caster/camber needs, the kit includes instructions on setup and trimming.

  • 7075 Aluminum Split-tapered bushings with conical washer
  • Huge 7/8″ Teflon lined Spherical Bearings
  • All assemblies are greased and lubricated
  • Choose from press-in or weld-in styles below
  • 7/8″ Grade 12 Socket Head Cap Screw (170,000 psi tensile strength)
  • 7/8″ Low profile locknut
  • *Marketed as “Offroad Use Only”
  • U.S. PATENT PENDING
  • **** INSTALLATION INSTRUCTIONS CLICK HERE ****

**High Clearance versions require welding!**


Fitment: Please choose an option based off of the year vehicle your axle was originally installed in as well as your desired bushing offset (0 degree, 1.5 degree, or 3 degree). Off-road rigs generally benefit from a 3 degree bushing to gain negative camber while lifted rigs also benefit in that they can gain back the positive caster lost when lifting. The 1.5 degree bushing option is available for more “stock” applications. Popular settings are -3* camber (mostly used in Ultra4 style builds), -1.5* camber/+1.5* caster, -1* camber/+2* caster, and -.5* camber/+2.5* caster. Stock lower balljoints see less failures but are susceptible to “push out.” This happens when a shaft breaks and pushes the joint out the bottom of the knuckle. The lower system uses the same basic design as the upper, with a steel cone to match the tapered hole in the knuckle.

Looking to weld your kit?: The press fit systems can be welded in by simply removing the clear zinc coating, please see the instructions for more details.


What is a Ball Joint Delete System and why do you need it?  Learn more from American Iron Founder Josh Dodsworth:



We stand by the quality and durability of our products. We will warranty parts found to be defective. The spherical bearings, specifically, also carry a 2 year or 30,000 mile (whichever comes first) warranty. We cannot warranty parts that have been damaged due to improper installation. We will, however, work with our customers on replacing individual parts should they be needed.
